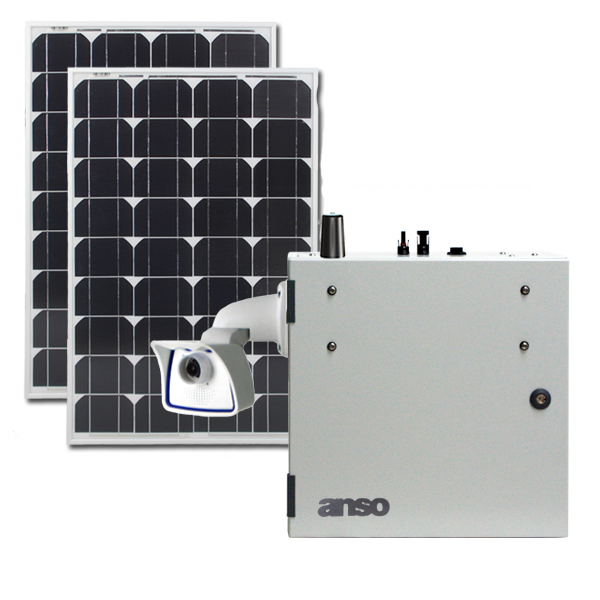

Commando M-Series 24/7 HD+ 6MP 4G/3G/WiFi Solar Web Camera System
6 Megapixel Industrial HD Quality IP Camera System for Wireless Standalone Live Remote Monitoring and Time Lapse Recording
Utilising a solar powered 3G/4G-LTE internet connected system with a high end IP camera. The Commando is a 24/7 site monitoring tool that is ideal for multiple use applications such as uploading time lapse images to a web server while also providing a live online site monitoring tool that has images that can be available to many stakeholders or direct to the public.
This system combines our highest resolution 6MP IP camera with a 24/7 solar power system and a 4G internet connection to produce the ultimate fully stand alone camera system. These systems are used in applications such as asset monitoring systems, wildlife research and pest control, construction projects for time lapse recording, remote mointoring and online display of progress images. These systems can also be used for public infrastructure locations such as roads, railways, waterways and public places of interest as well as agriculture and mining applications.
With the rapid development of wireless 3G and 4G broadband internet, supported by today's affordable solar energy solutions, these industrial grade camera systems can be rapidly deployed to any location. To compliment these technologies we utilise a premium high definition web camera with extensive multi-stream functionality. The quality of the camera and the images it produces revolutionises the use of webcam applications.

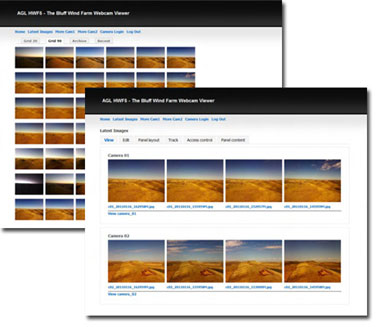

Our camera systems can be accessed remotely for real-time live viewing via the mobile phone networks. In addition to this we also include a fully customisable image viewing website platform for viewing static images that have been uploaded by the camera. This is ideal for presenting images to a wide audience without needing to provide direct access to the camera.

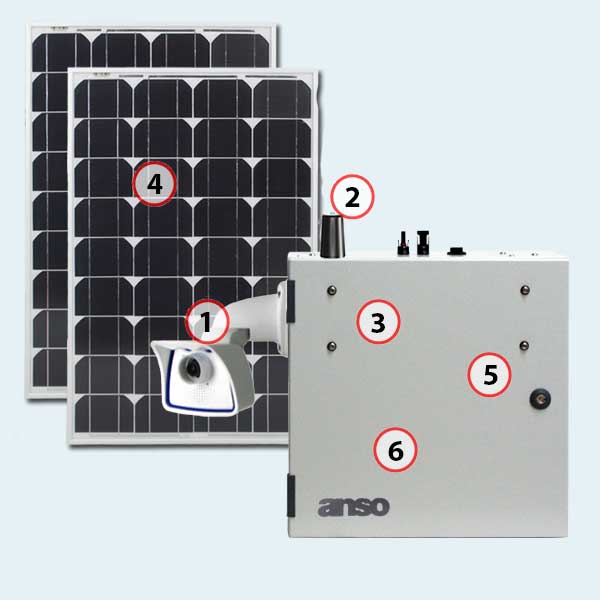

- Ultra high definition IP Camera 6 Megapixel 3072 x 2048px resolution. Live remote video strem viewing, multi-stream image/video settings with multiple events.
- Dual solar panels, 100Ah battery and industrial solar charge controller for 24/7 applications (or battery excluded for international customers)
- Industrial grade wireless 4G-LTE/4GX modem/router with fallback to 3G.
- High gain external full spectrum multi-band 4G/3G antenna
- WiFi 802.11b/g/n 150Mbps connectivity for local wireless access
- Digital timer system control for advanced power management
- Steel weather proof lockable system housing and universal mounting brackets for flexible installation
- Full support during installation including initial system optimisation as well as ongoing remote configuration modifications.
Commando system suitable for 24/7 operation applications.
For applications that only require 12 hour daytime operation please refer to our Sentinel range of systems.
Specifications - Commando M 6MP 4G/3G/WiFi 24/7 Solar Web Camera System
Highest quality 6 megapixel IP camera designed for use in the most challenging applications and extreme outdoor environments. This camera boasts Ultra High Definition 6 Megapixel (3072 x 2048 px) resolution, allowing for the delivery of extremely detailed images and coverage that is over 20 times larger than a standard VGA CCTV camera.
Available with various interchangeable fixed lenses to select the field of view that is suitable for your application. Choose from seven different lenses from a super wide 103 horizontal view down to a telephoto 8 horizontal view for distance applications. There is a lens to suit all applications.
With highly advanced configuration options such as custom image profiles, extensive exposure control and complex event capture programs, this camera also includes leading IP camera advancements with the latest in ultra low light moonlight image sensor technology and activity sensor video motion event triggers.
Multiple imager/video streams can be delivered simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms so as to meet different needs or bandwidth constraints. This enables digital manipulation of the live viewing window while keeping the other image profiles set for active event capture.
The IP camera of choice for the most extreme locations around the world from mountain tops, to tropical rainforests or arid desert conditions, this camera can do it all.
- 6 Megapixel resolution (3072x2048 pixels)
- 1/1.8" CMOS progressive scan
- Interchangeable lenses: choose from horizontal 103°, 90°, 60°, 45°, 31°, 15°, 8°
- Light Sensitivity: 0.1 lux (t=1/60 s), 0.005 lux (t=1/1 s)
- Max. Video stream (MxPEG) - 30@HD(1280x720), 30@MEGA, 15@QXGA, 10@5MP, 8@6MP
- Microphone and speaker with full audio functionality (VoIP and SIP telephony with video)
- Custom image profiles, colour and exposure control
- Backlight compensation, automatic white balance, image distortion correction
- Video motion detection, Video Activity Sensor
- Multiple FTP & Email profiles with NAS & SD event storage
- Internal DVR with included internal 32GB Micro-SD, recording without network load
- Robust, low-maintenance and weatherproof from -30 to +50 °C (-22 to +122 °F), (IP66)
- Digital continuous zoom, pan and tilt
- Web Browser live viewing, configuration and local event storage access
Alternative Camera Models
Dual Lens Thermal
Thermographic lens for 24/7 detection with a 6MP colour lens for identification.
Temperature measuring range of -40 to +550°C
High resolution 180º widescreen panorama with auto image correction
Adjustable variable CS Vario Lens
73°-37° H x 158°-28° V
Wireless 4G-LTE/3G Broadband Internet
Includes an industrial grade wireless broadband 4G-LTE modem and router with fallback to 3G as well as an external high gain base station multi-band mobile broadband antenna for improved reception strength.
This system utilises an industrial grade 4G-LTE/3G wireless internet modem/router to connect to the internet. We can assist you with activating a mobile broadband data sim on the Telstra network through our recommended Authorised Telstra Mobile Dealer or alternatively you can arrange the activation of a sim card to your existing Telstra account via your own Telstra representative.
For ease of setup and installation we recommend our clients to activate one of our blank Telstra sims to their account so that we can pre-install the sim and test all system functionality prior to delivery. This enables you to simply unpack and mount the system and then turn it on to achieve instnt full remote system functionality.
All Australian ISP mobile data sims are compatible with our systems, although to obtain full remote access functionality it is recommended to use the Telstra Mobile Network.
International customers will need to source and install a 4G/3G broadband sim card from a local provider. The multi-band modem will connect to almost all networks around the world that use the normal range of frequencies.
Cellular Connection Frequencies include:
4G LTE FDD 800/ 900/ 1800/ 2100/ 2600MHz
UMTS/ HSPA/ HSUPA/ HSPA/ HSPA+/ DC-HSPA+ 850/ 900/ 1900/ 2100Mhz
Quad-band EGSM 850/ 900/ 1800/ 1900MHz
For Australian customers we recommend the Telstra Mobile Broadband netwrok to achieve the maximum coverage, speeds and connection functionality.
The cost of ongoing internet bandwidth costs are the customers responsibility to maintain separately to the cost of this system.
For international customers, our Multi-Band 4G-LTE/3G Modems work in most countries. We can send detailed instructions for installing your own sim card and configuring your internet connection. We will still pre-configure your router settings as much as we can before shipping the product. Full support via phone, email and skype is included to assist you with connection setup.
For full remote access functionality an internet connection with a publicly accessible IP address is required. Some mobile broadband services are setup by default with a non-public firewalled IP address, which would enable outgoing uploads but no remote access into the system. Most ISPs can provide a connection with a public IP address upon request. International clients are recommended to contact your local mobile broadband ISP to confirm the availability of a Public IP address service prior to purchase to ensure full remote access system funtionslity can be achieved.
Solar Charge Controller
Solar charge controller with internal microprocessor providing optimal charging current and voltage. The charge controller includes 3-stage (Bulk, Absorption & Float) charging with temperature compensation ensuring correct maintenance of the internal lead acid battery and maximising the service life of the battery.
The solar charge controller also includes low voltage cutoff protection to preserve the battery and to protect other system conponents from powering on below the required voltage.
Our solar systems use a 12V internal power circuit which means they are very safe to use and do not require an electrician for installation or maintenance.
The systems include an 8-day programmble digital timer to manage auto on/off times for system power.
Monocrystalline Solar Panels
These monocrystalline silicon solar panels are designed for long life (up to 25 years) and high efficiency output. An excellent solution for remote or mobile power applications. Aluminium frames and tempered glass panels allow installation in demanding environments. To prevent moisture ingress, the solar cell modules are protected by a sheet of 3.2mm tempered glass. Operating temperature -40°C to 85°C.
Lead Acid Battery
Sealed, non spillable Lead Acid Battery. System case can accommodate up to 100 Amp/Hour capacity for different usage applications. New design for easier replacement of batteries.
The Commando range of systems are suitable for 24 hour day/night applications.
Option available to supply system without battery. Ideal for airfreight to international customers due to the weight saving and means the shipment does not include dangerous goods for easy international customs clearance.
