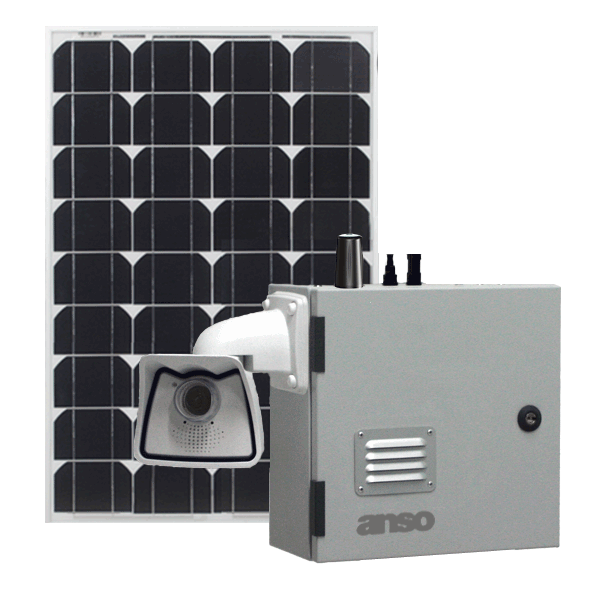

Sentinel M-Series HD+ 6MP 4G/3G/WiFi Solar Web Camera System

Industrial 6 MegaPixel Ultra HD+ extreme remote web camera system for 12 hour daytime solar applications.

The latest in 3G/4G-LTE wireless broadband internet and solar power technology, combined with an industrial quality high definition IP camera. This fully stand alone image recording and live monitoring solution is ideal for Australian regional locations such as farms and reservoirs, mining and construction projects and other applications where camera locations do not have fixed power or internet connections.

With the rapid development of wireless 3G and 4G broadband internet, supported by today's affordable solar energy solutions, this true stand alone camera recording system is now achievable. To compliment these technologies we utilise a premium ultra high definition web camera with amazing functionality. The quality of the camera and the images it produces revolutionises the use of webcam applications.

Our camera systems can be accessed remotely for real-time live viewing via the mobile phone networks. In addition to this we also include a fully customisable image viewing website platform for viewing static images that have been uploaded by the camera. This is ideal for presenting images to a wide audience without needing to provide direct access to the camera.

System Includes:

  • Ultra high definition IP Camera 6 Megapixel 3072 x 2048px resolution. Live remote video strem viewing,  multi-stream image/video settings with multiple events.
  • Solar panel, internal battery and advanced solar charge controller.
  • Industrial grade wireless 4G-LTE/4GX modem/router with fallback to 3G.
  • High gain external full spectrum multi-band 4G/3G  antenna
  • WiFi 802.11b/g/n 150Mbps connectivity for local wireless access
  • Digital timer system control for advanced power management
  • Steel weather proof lockable system housing and universal mounting brackets for flexible installation
  • Full support during installation including initial system optimisation as well as ongoing remote configuration modifications.

Sentinel system recommended for 12 hour daytime operation only.
For 24/7 operation applications please refer to our Commando range of systems.

System Price:

From $ 7,980

Sentinel M-Series 6MP
4G/3G/WiFi Solar
Web Camera System

Camera Head Options:


Camera Head Options:


Camera Head Options:

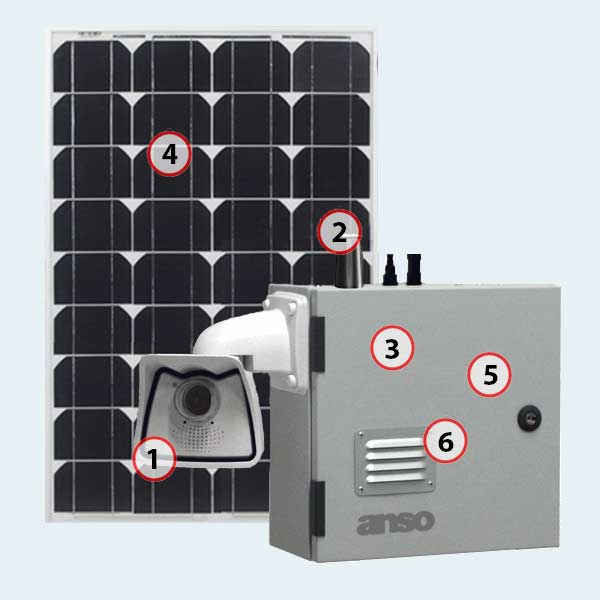

System Overview

1. Camera Head

Ultra high definition 3072x2048 px Multi-Stream Day/Night auto-iris outdoor camera delivering stunning image and video capture. The multi stream functionality will allow multiple different image/video streams with multiple simultaneous programmable events. Automatically capture timelapse images and video motion detection events uninterrupted while remotely viewing the live video feed. Included 32GB internal SD card for onbvoard storage.

2. Wireless Connectivity

Industrial grade 4G-LTE/4GX/3G mobile broadband network modem/router with high gain 5dBi full spectrum multi-band low profile  external antenna. Also includes WiFi 802.11b/g/n 150Mbps connectivity.

3. Solar Charge Controller

Microprocessor controlled solar charge controller. Three stage Bulk, Float and Absorption charging with internal LCD display of incoming panel voltage and current, internal battery voltage and average daily current and voltage input.

4. Solar Panel

High quality mono-crystalline solar panel. High efficiency, long life, heavy duty panel frame for exposed conditions with UV stabilised outdoor rated cables and connectors. Includes IP67 rated outdoor weather resistant external connectors for the solar panel leads to plug directly to the system housing.

5. Digital Timer Control

System operation controlled via integrated digital timer to more efficiently manage internal power usage or limit times for internet connectivity. Scheduled system power on/off and automatic rebooting for long term system reliability. This system allows for the powering up and down of camera and communications within the unit while solar charging systems continue uninterrupted. 7 day fully programmable digital timer, with up to 8 separate programs per day and internal battery for complete power control.

6. System Enclosure

Heavy Duty Steel Outdoor Enclosure with nylon seal washers. Filtered air intake (multi stage) with moisture catch chamber and easily changed internal filters. Optional keyed lock for improved tamper resistance.

Specifications - Sentinel M 6MP Wireless 4G/3G/WiFi Solar Web Camera System

Highest quality 6 megapixel IP camera designed for use in the most challenging applications and extreme outdoor environments. This camera boasts Ultra High Definition 6 Megapixel (3072 x 2048 px) resolution, allowing for the delivery of extremely detailed images and coverage that is over 20 times larger than a standard VGA CCTV camera.

Available with various interchangeable fixed lenses to select the field of view that is suitable for your application. Choose from seven different lenses from a super wide 103 horizontal view down to a telephoto 8 horizontal view for distance applications. There is a lens to suit all applications.

With highly advanced configuration options such as custom image profiles, extensive exposure control and complex event capture programs, this camera also includes leading IP camera advancements with the latest in ultra low light moonlight image sensor technology and activity sensor video motion event triggers.

Multiple imager/video streams can be delivered simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms so as to meet different needs or bandwidth constraints. This enables digital manipulation of the live viewing window while keeping the other image profiles set for active event capture.

The IP camera of choice for the most extreme locations around the world from mountain tops, to tropical rainforests or arid desert conditions, this camera can do it all.

Features

  • 6 Megapixel resolution (3072x2048 pixels)
  • 1/1.8" CMOS progressive scan
  • Interchangeable lenses: choose from horizontal  103°, 90°, 60°, 45°, 31°, 15°, 8°
  • Light Sensitivity: 0.1 lux (t=1/60 s), 0.005 lux (t=1/1 s)
  • Max. Video stream (MxPEG) - 30@HD(1280x720), 30@MEGA, 15@QXGA, 10@5MP, 8@6MP
  • Microphone and speaker with full audio functionality (VoIP and SIP telephony with video)
  • Custom image profiles, colour and exposure control
  • Backlight compensation, automatic white balance, image distortion correction
  • Video motion detection, Video Activity Sensor
  • Multiple FTP & Email profiles with NAS & SD event storage
  • Internal DVR with included internal 32GB Micro-SD, recording without network load
  • Robust, low-maintenance and weatherproof from -30 to +50 °C (-22 to +122 °F), (IP66)
  • Digital continuous zoom, pan and tilt
  • Web Browser live viewing, configuration and local event storage access



Alternative Camera Models





Dual Lens Thermal

Thermographic lens for 24/7 detection with a 6MP colour lens for identification.

Temperature measuring range of -40 to +550°C



Hemispherical 180º

High resolution 180º widescreen panorama with auto image correction



CS Vario

Adjustable variable CS Vario Lens

73°-37° H x 158°-28° V

at 10m
14.8 - 6.7 x 11.1 - 5.0m

Wireless 4G-LTE/3G Broadband Internet

Includes an industrial grade wireless broadband 4G-LTE modem and router with fallback to 3G as well as an external high gain base station multi-band mobile broadband antenna for improved reception strength.

This system utilises an industrial grade 4G-LTE/3G wireless internet modem/router to connect to the internet. We can assist you with activating a mobile broadband data sim on the Telstra network through our recommended Authorised Telstra Mobile Dealer or alternatively you can arrange the activation of a sim card to your existing Telstra account via your own Telstra representative.

For ease of setup and installation we recommend our clients to activate one of our blank Telstra sims to their account so that we can pre-install the sim and test all system functionality prior to delivery. This enables you to simply unpack and mount the system and then turn it on to achieve instnt full remote system functionality.

All Australian ISP mobile data sims are compatible with our systems, although to obtain full remote access functionality it is recommended to use the Telstra Mobile Network.

International customers will need to source and install a 4G/3G broadband sim card from a local provider. The multi-band modem will connect to almost all networks around the world that use the normal range of frequencies.

Cellular Connection Frequencies include:
4G LTE FDD 800/ 900/ 1800/ 2100/ 2600MHz
UMTS/ HSPA/ HSUPA/ HSPA/ HSPA+/ DC-HSPA+ 850/ 900/ 1900/ 2100Mhz
Quad-band EGSM 850/ 900/ 1800/ 1900MHz

For Australian customers we recommend the Telstra Mobile Broadband netwrok to achieve the maximum coverage, speeds and connection functionality.

The cost of ongoing internet bandwidth costs are the customers responsibility to maintain separately to the cost of this system.

For international customers, our Multi-Band 4G-LTE/3G Modems work in most countries. We can send detailed instructions for installing your own sim card and configuring your internet connection. We will still pre-configure your router settings as much as we can before shipping the product. Full support via phone, email and skype is included to assist you with connection setup.



For full remote access functionality an internet connection with a publicly accessible IP address is required. Some mobile broadband services are setup by default with a non-public firewalled IP address, which would enable outgoing uploads but no remote access into the system. Most ISPs can provide a connection with a public IP address upon request. International clients are recommended to contact your local mobile broadband ISP to confirm the availability of a Public IP address service prior to purchase to ensure full remote access system funtionslity can be achieved.

Solar Charge Controller

Solar charge controller with internal microprocessor providing optimal charging current and voltage. The charge controller includes 3-stage (Bulk, Absorption & Float) charging with temperature compensation ensuring correct maintenance of the internal lead acid battery and maximising the service life of the battery.

The solar charge controller also includes low voltage cutoff protection to preserve the battery and to protect other system conponents from powering on below the required voltage.

Our solar systems use a 12V internal power circuit which means they are very safe to use and do not require an electrician for installation or maintenance.

The systems include an 8-day programmble digital timer to manage auto on/off times for system power.

Monocrystalline Solar Panel

These monocrystalline silicon solar panels are designed for long life (up to 25 years) and high efficiency output. An excellent solution for remote or mobile power applications. Aluminium frames and tempered glass panels allow installation in demanding environments. To prevent moisture ingress, the solar cell modules are protected by a sheet of 3.2mm tempered glass. Operating temperature -40°C to 85°C.

Lead Acid Battery

Sealed, non spillable 20 Amp/Hour Lead Acid Battery.

It is highly recommended that the Sentinel range of systems are used only for 12 hour daytime applications. Although the 20A/H battery in the system will generally keep a system running throughout a full night when fully charged, these systems will not sustain permanent 24 hour usage throughout all weather conditions.
