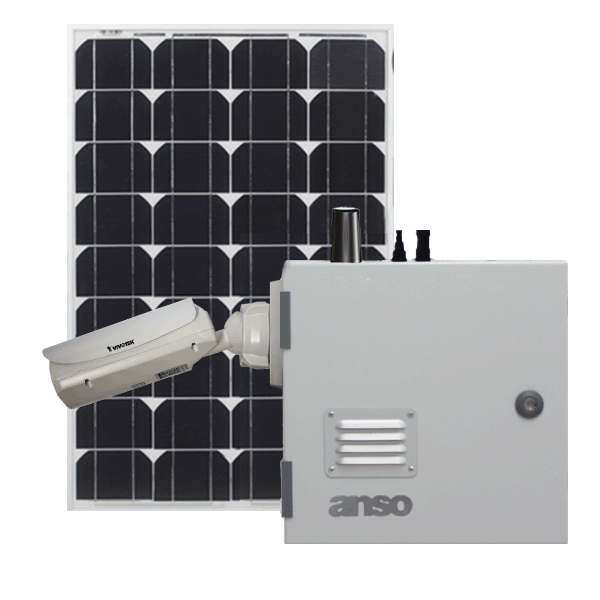

Sentinel V-Series HD+ 5MP 4G/3G/WiFi Solar Web Camera System
Industrial 5 MegaPixel Super-HD+ outdoor time lapse web camera system for 12 hour daytime solar operation.
The latest in high resolution wireless 3G/4G-LTE internet and solar powered IP camera technology. This 5MP industrial grade stand alone image recording and live video monitoring solution is ideal for simultaneous time lapse recording and online project management applications such as major infrastructure and construction projects, mining sites, flood and fire monitoring as well as any other applications where camera locations do not have fixed power or internet connections.
With the rapid development of wireless 3G and 4G broadband internet, supported by today's affordable solar energy solutions, this truly stand alone camera recording system is now available. To compliment these technologies we utilise a premium 5mp high definition IP web camera with amazing functionality. The quality of the camera and the super high resolution 5MP images it produces have significantly increased the possible applications for IP web camera solutions.
Our camera systems can be accessed remotely for real-time live viewing via the mobile phone networks. In addition to this we also include a fully customisable image viewing website platform for viewing static images that have been uploaded by the camera. This is ideal for presenting images to a wide audience without needing to provide direct access to the camera.
- Super high definition IP Camera 5 MegaPixel HD+ 2560x1920 px resolution. Live remote video strem viewing, optical zoom & focus, multi-stream image/video settings with multiple events and image profiles.
- Solar panel, internal battery and advanced solar charge controller.
- Industrial grade wireless 4G-LTE/4GX modem/router with fallback to 3G.
- High gain external full spectrum multi-band 4G/3G antenna
- WiFi 802.11b/g/n 150Mbps connectivity for local wireless access
- Digital timer system control for advanced power management
- Steel weather proof lockable system housing and universal mounting brackets for flexible installation
- Full support during installation including initial system optimisation as well as ongoing remote configuration modifications.
Specifications - Sentinel V 5MP Wireless 4G/3G/WiFi Solar Web Camera System
Super High Definition Multi-Stream Web Camera
A best-in-class 5 megapixel HD+ multi-stream IP camera for extreme outdoor applications. This camera boasts super high definition 5 Megapixel HD+ (2560 x 1920 px) resolution, allowing for the delivery of extremely detailed images and coverage that is 16 times larger than a standard VGA CCTV camera and will be significantly larger than your computer screen when viewed at full size. This camera also includes a remotely adjustable optical lens to alter the optical zoom and focus as well as being able to utilise digital zoom.
To maximize the benefit of the 5 megapixel sensor, the V5 Camera Head employs several innovative technologies for optimized bandwidth efficiency. The ePTZ function enables users to quickly move to a target area for close-up shots without moving the camera physically. Users can also receive only the portions of the images they are interested in via the cropping function.
Multiple imager/video streams can be delivered simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms so as to meet different needs or bandwidth constraints. This enables digital manipulation of the live viewing stream while keeping the other streams set for active event capture. The V5 also offers activity adaptive streaming support that dynamically allocates bandwidth according to the video content and trigger state.
Designed for outdoor surveillance, the V5 features auto-iris capability to protect the lens from damage induced by direct sunlight. To adapt to light changes throughout the day, the camera includes a removable IR-cut filter and IR illuminators for superior image quality around the clock. The V5 also comes with an IP66-rated housing that offers protection against rain and dust to ensure functional operation in all types of weather conditions.
With other advanced features such as tamper detection, SD/SDHC/SDXC card on-board storage, and two-way audio (full duplex), the V5 is an all-in-one super high definition multi-stream IP network camera for outdoor environments.
- 5 Megapixel maximum resolution (2560x1920 px)
- 1/3.2" Progressive CMOS Image Sensor
- H.264 & MJPEG - 15 fps @ 2560x1920 5MP : 30 fps @ 1920x1080 2MP Full HD
- Remotely adjustable Vari-focal Lens; 3~9mm Focal Length
- Field of View: 35°~78° Horizontal ; 27°~54° Vertical ; 44°~100° Diagonal
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 30 Meters
- Adjustable video/image size, quality and bit rate.
- 4 Simultaneous streams for live viewing and event recording
- FTP, Email, NAS & SD event storage with image and video outputs
- Five-window video motion detection
- Smart Focus System for Remote and Precise Focus Adjustment
- Dual day/night profiles for brightness, contrast, saturation, sharpness, white balance and exposure control.
- WDR Enhancement for Unparalleled Visibility in Extremely Bright or Dark Environments
- Built-in SD/SDHC/SDXC Card Slot for On-board Storage
- Weather-proof IP66-rated Housing
- Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
- Web Browser live viewing, configuration and local event storage access
Wireless 4G-LTE/3G Broadband Internet
Includes an industrial grade wireless broadband 4G-LTE modem and router with fallback to 3G as well as an external high gain base station multi-band mobile broadband antenna for improved reception strength.
This system utilises an industrial grade 4G-LTE/3G wireless internet modem/router to connect to the internet. We can assist you with activating a mobile broadband data sim on the Telstra network through our recommended Authorised Telstra Mobile Dealer or alternatively you can arrange the activation of a sim card to your existing Telstra account via your own Telstra representative.
For ease of setup and installation we recommend our clients to activate one of our blank Telstra sims to their account so that we can pre-install the sim and test all system functionality prior to delivery. This enables you to simply unpack and mount the system and then turn it on to achieve instnt full remote system functionality.
All Australian ISP mobile data sims are compatible with our systems, although to obtain full remote access functionality it is recommended to use the Telstra Mobile Network.
International customers will need to source and install a 4G/3G broadband sim card from a local provider. The multi-band modem will connect to almost all networks around the world that use the normal range of frequencies.
Cellular Connection Frequencies include:
4G LTE FDD 800/ 900/ 1800/ 2100/ 2600MHz
UMTS/ HSPA/ HSUPA/ HSPA/ HSPA+/ DC-HSPA+ 850/ 900/ 1900/ 2100Mhz
Quad-band EGSM 850/ 900/ 1800/ 1900MHz
For Australian customers we recommend the Telstra Mobile Broadband netwrok to achieve the maximum coverage, speeds and connection functionality.
The cost of ongoing internet bandwidth costs are the customers responsibility to maintain separately to the cost of this system.
For international customers, our Multi-Band 4G-LTE/3G Modems work in most countries. We can send detailed instructions for installing your own sim card and configuring your internet connection. We will still pre-configure your router settings as much as we can before shipping the product. Full support via phone, email and skype is included to assist you with connection setup.
For full remote access functionality an internet connection with a publicly accessible IP address is required. Some mobile broadband services are setup by default with a non-public firewalled IP address, which would enable outgoing uploads but no remote access into the system. Most ISPs can provide a connection with a public IP address upon request. International clients are recommended to contact your local mobile broadband ISP to confirm the availability of a Public IP address service prior to purchase to ensure full remote access system funtionslity can be achieved.
Solar Charge Controller
Solar charge controller with internal microprocessor providing optimal charging current and voltage. The charge controller includes 3-stage (Bulk, Absorption & Float) charging with temperature compensation ensuring correct maintenance of the internal lead acid battery and maximising the service life of the battery.
The solar charge controller also includes low voltage cutoff protection to preserve the battery and to protect other system conponents from powering on below the required voltage.
Our solar systems use a 12V internal power circuit which means they are very safe to use and do not require an electrician for installation or maintenance.
The systems include an 8-day programmble digital timer to manage auto on/off times for system power.
Monocrystalline Solar Panel
These monocrystalline silicon solar panels are designed for long life (up to 25 years) and high efficiency output. An excellent solution for remote or mobile power applications. Aluminium frames and tempered glass panels allow installation in demanding environments. To prevent moisture ingress, the solar cell modules are protected by a sheet of 3.2mm tempered glass. Operating temperature -40°C to 85°C.
Lead Acid Battery
Sealed, non spillable 20 Amp/Hour Lead Acid Battery.
It is highly recommended that the Sentinel range of systems are used only for 12 hour daytime applications. Although the 20A/H battery in the system will generally keep a system running throughout a full night when fully charged, these systems will not sustain permanent 24 hour usage throughout all weather conditions.
