Commando V-Series 24/7 HD+ 5MP 4G/3G/WiFi Solar IP Web Camera System

5 Megapixel Industrial HD Quality IP Camera System for 24/7 Wireless Standalone Remote Monitoring and Time Lapse Recording

Utilising a solar powered 3G/4G-LTE internet connected system with a high end IP camera. The Commando is a 24/7 site monitoring tool that is ideal for multiple use applications such as uploading time lapse images to a web server while also providing a full online site live monitoring tool while also providing images that can be available online to many stakeholders or direct to the public.

This system utilises a 5MP HD+ quality IP camera that includes remotely adjustable optical zoom and focus combined with a 24/7 solar power system and a 4G internet connection to produce the ultimate fully stand alone camera system. These systems are used in applications such as asset monitoring systems, wildlife research and pest control, construction projects for time lapse recording, remote monitoring and online display of progress images. These systems can also be used for public infrastructure locations such as roads, railways, waterways and public places of interest as well as agriculture and mining applications.

With the rapid development of wireless 3G and 4G broadband internet, supported by today's affordable solar energy solutions, these industrial grade camera systems can be rapidly deployed to any location. To compliment these technologies we utilise a premium high definition web camera with extensive multi-stream functionality. The quality of the camera and the images it produces revolutionises the use of webcam applications.

Our camera systems can be accessed remotely for real-time live viewing via the mobile phone networks. In addition to this we also include a fully customisable image viewing website platform for viewing static images that have been uploaded by the camera. This is ideal for presenting images to a wide audience without needing to provide direct access to the camera.

System Includes:

  • Super high definition IP Camera 5 MegaPixel HD+ 2560x1920 px resolution. Live remote video strem viewing, optical zoom & focus, multi-stream image/video settings with multiple events and image profiles.
  • Dual solar panels, 100Ah battery and industrial solar charge controller for 24/7 applications (or battery excluded for international customers)
  • Industrial grade wireless 4G-LTE/4GX modem/router with fallback to 3G.
  • High gain external full spectrum multi-band 4G/3G  antenna
  • WiFi 802.11b/g/n 150Mbps connectivity for local wireless access
  • Digital timer system control for advanced power management
  • Steel weather proof lockable system housing and universal mounting brackets for flexible installation
  • Full support during installation including initial system optimisation as well as ongoing remote configuration modifications.

System Price:

From $ 7,750

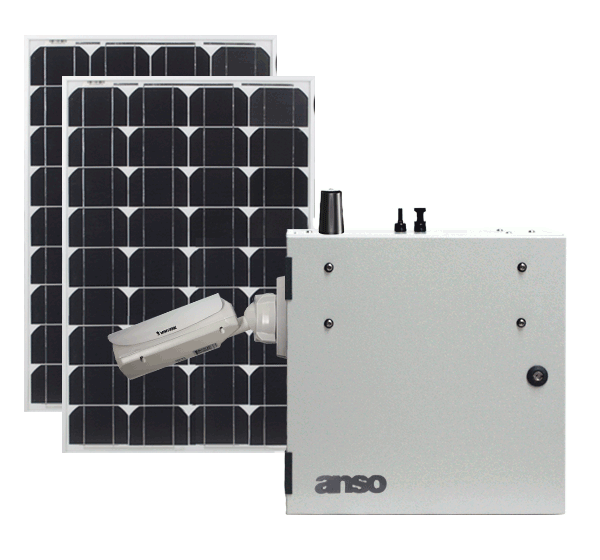

Commando V-Series 5MP
4G/3G WiFi Solar
Web Camera System

Commando system suitable for 24/7 operation applications.
For applications that only require 12 hour daytime operation please refer to our Sentinel range of systems.

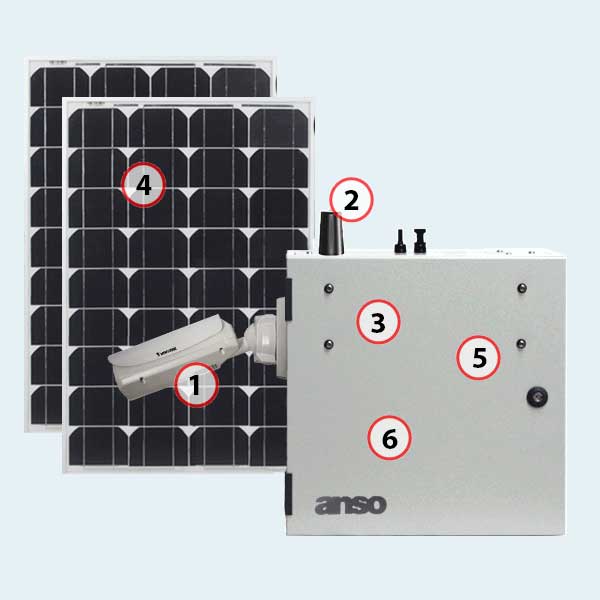

System Overview

1. Camera Head

Super high definition 2560x1920 px Multi-Stream Day/Night auto-iris outdoor camera delivering stunning image and video capture. Remotely adjustable optical zoom and focus maintaining the full resolution at any zoom position. The multi stream functionality will allow up to four different image/video streams with multiple simultaneous programmable events. Automatically capture time lapse images and video motion detection events uninterrupted while remotely viewing the live video feed. Included 32GB internal SD card for onboard storage.

2. Wireless Connectivity

Industrial grade 4G-LTE/4GX/3G mobile broadband network modem/router with high gain 5dBi full spectrum multi-band low profile  external antenna. Also includes WiFi 802.11b/g/n 150Mbps connectivity.

3. Solar Charge Controller

Microprocessor controlled solar charge controller. Three stage Bulk, Float and Absorption charging with internal LCD display of incoming panel voltage and current, internal battery voltage and average daily current and voltage input.

4. Solar Panels

Two high quality mono-crystalline solar panels. High efficiency, long life, heavy duty panel frame for exposed conditions with UV stabilised outdoor rated cables and connectors. Includes IP67 rated outdoor weather resistant external connectors for the solar panel leads to plug directly to the system housing.

5. Digital Timer Control

System operation controlled via integrated digital timer to more efficiently manage internal power usage or limit times for internet connectivity. Scheduled system power on/off and automatic rebooting for long term system reliability. This system allows for the powering up and down of camera and communications within the unit while solar charging systems continue uninterrupted. 7 day fully programmable digital timer, with up to 8 separate programs per day and internal battery for complete power control.

6. System Enclosure

Heavy Duty Steel Outdoor Enclosure with nylon seal washers. Filtered air intake (multi stage) with moisture catch chamber and easily changed internal filters. Optional keyed lock for improved tamper resistance.

Specifications - Commando V 5MP 4G/3G/WiFi 24/7 Solar Web Camera System

Super High Definition Multi-Stream Web Camera

A best-in-class 5 megapixel HD+ multi-stream IP camera for extreme outdoor applications. This camera boasts super high definition 5 Megapixel HD+ (2560 x 1920 px) resolution, allowing for the delivery of extremely detailed images and coverage that is 16 times larger than a standard VGA CCTV camera and will be significantly larger than your computer screen when viewed at full size. This camera also includes a remotely adjustable optical lens to alter the optical zoom and focus as well as being able to utilise digital zoom.

To maximize the benefit of the 5 megapixel sensor, the V5 Camera Head employs several innovative technologies for optimized bandwidth efficiency. The ePTZ function enables users to quickly move to a target area for close-up shots without moving the camera physically. Users can also receive only the portions of the images they are interested in via the cropping function.

Multiple imager/video streams can be delivered simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms so as to meet different needs or bandwidth constraints. This enables digital manipulation of the live viewing stream while keeping the other streams set for active event capture. The V5 also offers activity adaptive streaming support that dynamically allocates bandwidth according to the video content and trigger state.

Designed for outdoor surveillance, the V5 features auto-iris capability to protect the lens from damage induced by direct sunlight. To adapt to light changes throughout the day, the camera includes a removable IR-cut filter and IR illuminators for superior image quality around the clock. The V5 also comes with an IP66-rated housing that offers protection against rain and dust to ensure functional operation in all types of weather conditions.

With other advanced features such as tamper detection, SD/SDHC/SDXC card on-board storage, and two-way audio (full duplex), the V5 is an all-in-one super high definition multi-stream IP network camera for outdoor environments.

Features

  • 5 Megapixel maximum resolution (2560x1920 px)
  • 1/3.2" Progressive CMOS Image Sensor
  • H.264 & MJPEG - 15 fps @ 2560x1920 5MP : 30 fps @ 1920x1080 2MP Full HD
  • Remotely adjustable Vari-focal Lens; 3~9mm Focal Length
  • Field of View: 35°~78° Horizontal ; 27°~54° Vertical ; 44°~100° Diagonal
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Adjustable video/image size, quality and bit rate.
  • 4 Simultaneous streams for live viewing and event recording
  • FTP, Email, NAS & SD event storage with image and video outputs
  • Five-window video motion detection
  • Smart Focus System for Remote and Precise Focus Adjustment
  • Dual day/night profiles for brightness, contrast, saturation, sharpness, white balance and exposure control.
  • WDR Enhancement for Unparalleled Visibility in Extremely Bright or Dark Environments
  • Built-in SD/SDHC/SDXC Card Slot for On-board Storage
  • Weather-proof IP66-rated Housing
  • Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
  • Web Browser live viewing, configuration and local event storage access

Wireless 4G-LTE/3G Broadband Internet

Includes an industrial grade wireless broadband 4G-LTE modem and router with fallback to 3G as well as an external high gain base station multi-band mobile broadband antenna for improved reception strength.

This system utilises an industrial grade 4G-LTE/3G wireless internet modem/router to connect to the internet. We can assist you with activating a mobile broadband data sim on the Telstra network through our recommended Authorised Telstra Mobile Dealer or alternatively you can arrange the activation of a sim card to your existing Telstra account via your own Telstra representative.

For ease of setup and installation we recommend our clients to activate one of our blank Telstra sims to their account so that we can pre-install the sim and test all system functionality prior to delivery. This enables you to simply unpack and mount the system and then turn it on to achieve instnt full remote system functionality.

All Australian ISP mobile data sims are compatible with our systems, although to obtain full remote access functionality it is recommended to use the Telstra Mobile Network.

International customers will need to source and install a 4G/3G broadband sim card from a local provider. The multi-band modem will connect to almost all networks around the world that use the normal range of frequencies.

Cellular Connection Frequencies include:
4G LTE FDD 800/ 900/ 1800/ 2100/ 2600MHz
UMTS/ HSPA/ HSUPA/ HSPA/ HSPA+/ DC-HSPA+ 850/ 900/ 1900/ 2100Mhz
Quad-band EGSM 850/ 900/ 1800/ 1900MHz

For Australian customers we recommend the Telstra Mobile Broadband netwrok to achieve the maximum coverage, speeds and connection functionality.

The cost of ongoing internet bandwidth costs are the customers responsibility to maintain separately to the cost of this system.

For international customers, our Multi-Band 4G-LTE/3G Modems work in most countries. We can send detailed instructions for installing your own sim card and configuring your internet connection. We will still pre-configure your router settings as much as we can before shipping the product. Full support via phone, email and skype is included to assist you with connection setup.



For full remote access functionality an internet connection with a publicly accessible IP address is required. Some mobile broadband services are setup by default with a non-public firewalled IP address, which would enable outgoing uploads but no remote access into the system. Most ISPs can provide a connection with a public IP address upon request. International clients are recommended to contact your local mobile broadband ISP to confirm the availability of a Public IP address service prior to purchase to ensure full remote access system funtionslity can be achieved.

Solar Charge Controller

Solar charge controller with internal microprocessor providing optimal charging current and voltage. The charge controller includes 3-stage (Bulk, Absorption & Float) charging with temperature compensation ensuring correct maintenance of the internal lead acid battery and maximising the service life of the battery.

The solar charge controller also includes low voltage cutoff protection to preserve the battery and to protect other system conponents from powering on below the required voltage.

Our solar systems use a 12V internal power circuit which means they are very safe to use and do not require an electrician for installation or maintenance.

The systems include an 8-day programmble digital timer to manage auto on/off times for system power.

Monocrystalline Solar Panels

These monocrystalline silicon solar panels are designed for long life (up to 25 years) and high efficiency output. An excellent solution for remote or mobile power applications. Aluminium frames and tempered glass panels allow installation in demanding environments. To prevent moisture ingress, the solar cell modules are protected by a sheet of 3.2mm tempered glass. Operating temperature -40°C to 85°C.

Lead Acid Battery

Sealed, non spillable Lead Acid Battery. System case can accommodate up to 100 Amp/Hour capacity for different usage applications. New design for easier replacement of batteries.

The Commando range of systems are suitable for 24 hour day/night applications.

Option available to supply system without battery. Ideal for airfreight to international customers due to the weight saving and means the shipment does not include dangerous goods for easy international customs clearance.
