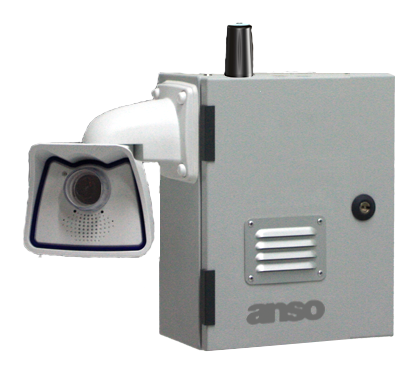

Scout M-Series HD+ 6MP 4G/3G/WiFi 12V Web Camera System

Scout M-series Industrial rapid deployment wireless 4G-LTE internet web camera system

The latest in industrial grade wireless 4G-LTE internet and 802.11n 150Mbps WiFi technology, combined with an Ultra High Definition IP Camera. This image recording and live remote monitoring solution is ideal for locations with on-site 12V or mains power but where a fixed line internet connection is unavailable.

Connects to any existing 12V power supply or can run from a mains power supply using a 12V adapter. Running a 12V line from a mains power point is safe and does not require an electrician for installation.

With the rapid development of high speed wireless 4G broadband, a fixed internet connection is no longer required. Our 4G/3G internet connected high resolution camera systems allow versatility in positioning without being reliant on a fixed line internet connection.

Ideal for temporary rapid deployment utilising a 12V vehicle battery in applications such as emergency services. Can be supplied in an ABS Road Case for storage and transportation, and can be setup and activated in just minutes for a live real-time remote video feed back to base.

Includes:

  • Ultra high definition IP Camera 6 Megapixel 3072 x 2048px resolution. Live remote video stream viewing,  multi-stream image/video settings with multiple events.
  • 12V adapter for connection to a mains supply
  • Industrial grade wireless 4G-LTE/4GX modem/router with fallback to 3G.
  • High gain external full spectrum multi-band 4G/3G  antenna
  • WiFi 802.11b/g/n 150Mbps connectivity for local wireless access
  • Digital timer system control for advanced power management
  • Steel weather proof lockable system housing and universal mounting brackets for flexible installation
  • Full support during installation including initial system optimisation as well as ongoing remote configuration modifications.
  • Optional: ABS plastic road case for easy transportation and deployment
  • Optional: quick setup tripod stand

Scout system requires power from an external source. For solar powered systems please refer to our Sentinel and Commando ranges of systems.

System Price:

From $ 6,650

Scout M-Series 6MP
4G/3G/WiFi 12V
Web Camera System


Camera Head Options:


Camera Head Options:


Camera Head Options:

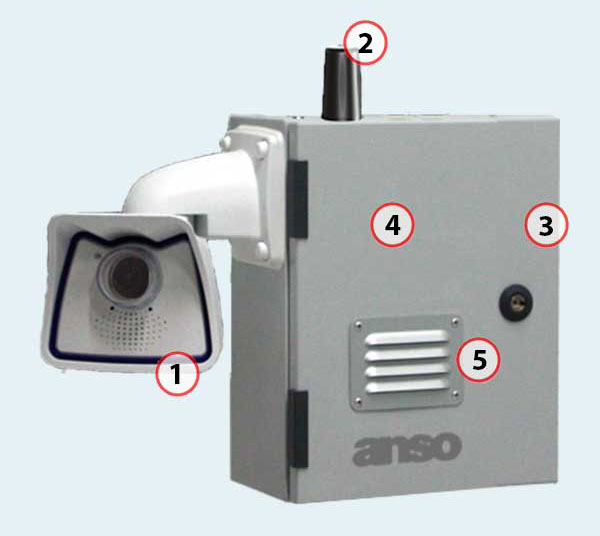

System Overview

Details - Scout M

1. Camera Head

Ultra high definition 3072x2048 px Multi-Stream Day/Night auto-iris outdoor camera delivering stunning image and video capture. The multi stream functionality will allow multiple different image/video streams with multiple simultaneous programmable events. Automatically capture timelapse images and video motion detection events uninterrupted while remotely viewing the live video feed. Included 32GB internal SD card for onbvoard storage.

2. Wireless Connectivity

Industrial grade 4G-LTE/4GX/3G mobile broadband network modem/router with high gain 5dBi full spectrum multi-band low profile  external antenna. Also includes WiFi 802.11b/g/n 150Mbps connectivity.

3. Power Connection

Mains Lead connects directly to external weatherproof connector, which can be capped when the lead is removed. The location of the power lead can be customised to suit your particular mounting arrangement

4. Digital Timer Control

System operation controlled via integrated digital timer to more efficiently manage internal power usage or limit times for internet connectivity. Scheduled system power on/off and automatic rebooting for long term system reliability. This system allows for the powering up and down of camera and communications within the unit while solar charging systems continue uninterrupted. 7 day fully programmable digital timer, with up to 8 separate programs per day and internal battery for complete power control.

5. System Enclosure

Heavy Duty Steel Outdoor Enclosure with nylon seal washers. Filtered air intake (multi stage) with moisture catch chamber and easily changed internal filters. Optional keyed lock for improved tamper resistance.

Specifications - Scout M 6MP Wireless 4G/3G/WiFi 12V Web Camera System

Highest quality 6 megapixel IP camera designed for use in the most challenging applications and extreme outdoor environments. This camera boasts Ultra High Definition 6 Megapixel (3072 x 2048 px) resolution, allowing for the delivery of extremely detailed images and coverage that is over 20 times larger than a standard VGA CCTV camera.

Available with various interchangeable fixed lenses to select the field of view that is suitable for your application. Choose from seven different lenses from a super wide 103 horizontal view down to a telephoto 8 horizontal view for distance applications. There is a lens to suit all applications.

With highly advanced configuration options such as custom image profiles, extensive exposure control and complex event capture programs, this camera also includes leading IP camera advancements with the latest in ultra low light moonlight image sensor technology and activity sensor video motion event triggers.

Multiple imager/video streams can be delivered simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms so as to meet different needs or bandwidth constraints. This enables digital manipulation of the live viewing window while keeping the other image profiles set for active event capture.

The IP camera of choice for the most extreme locations around the world from mountain tops, to tropical rainforests or arid desert conditions, this camera can do it all.

Features

  • 6 Megapixel resolution (3072x2048 pixels)
  • 1/1.8" CMOS progressive scan
  • Interchangeable lenses: choose from horizontal  103°, 90°, 60°, 45°, 31°, 15°, 8°
  • Light Sensitivity: 0.1 lux (t=1/60 s), 0.005 lux (t=1/1 s)
  • Max. Video stream (MxPEG) - 30@HD(1280x720), 30@MEGA, 15@QXGA, 10@5MP, 8@6MP
  • Microphone and speaker with full audio functionality (VoIP and SIP telephony with video)
  • Custom image profiles, colour and exposure control
  • Backlight compensation, automatic white balance, image distortion correction
  • Video motion detection, Video Activity Sensor
  • Multiple FTP & Email profiles with NAS & SD event storage
  • Internal DVR with included internal 32GB Micro-SD, recording without network load
  • Robust, low-maintenance and weatherproof from -30 to +50 °C (-22 to +122 °F), (IP66)
  • Digital continuous zoom, pan and tilt
  • Web Browser live viewing, configuration and local event storage access



Alternative Camera Models





Dual Lens Thermal

Thermographic lens for 24/7 detection with a 6MP colour lens for identification.

Temperature measuring range of -40 to +550°C



Hemispherical 180º

High resolution 180º widescreen panorama with auto image correction



CS Vario

Adjustable variable CS Vario Lens

73°-37° H x 158°-28° V

at 10m
14.8 - 6.7 x 11.1 - 5.0m

Wireless 4G-LTE/3G Broadband Internet

Includes an industrial grade wireless broadband 4G-LTE modem and router with fallback to 3G as well as an external high gain base station multi-band mobile broadband antenna for improved reception strength.

This system utilises an industrial grade 4G-LTE/3G wireless internet modem/router to connect to the internet. We can assist you with activating a mobile broadband data sim on the Telstra network through our recommended Authorised Telstra Mobile Dealer or alternatively you can arrange the activation of a sim card to your existing Telstra account via your own Telstra representative.

For ease of setup and installation we recommend our clients to activate one of our blank Telstra sims to their account so that we can pre-install the sim and test all system functionality prior to delivery. This enables you to simply unpack and mount the system and then turn it on to achieve instnt full remote system functionality.

All Australian ISP mobile data sims are compatible with our systems, although to obtain full remote access functionality it is recommended to use the Telstra Mobile Network.

International customers will need to source and install a 4G/3G broadband sim card from a local provider. The multi-band modem will connect to almost all networks around the world that use the normal range of frequencies.

Cellular Connection Frequencies include:
4G LTE FDD 800/ 900/ 1800/ 2100/ 2600MHz
UMTS/ HSPA/ HSUPA/ HSPA/ HSPA+/ DC-HSPA+ 850/ 900/ 1900/ 2100Mhz
Quad-band EGSM 850/ 900/ 1800/ 1900MHz

For Australian customers we recommend the Telstra Mobile Broadband netwrok to achieve the maximum coverage, speeds and connection functionality.

The cost of ongoing internet bandwidth costs are the customers responsibility to maintain separately to the cost of this system.

For international customers, our Multi-Band 4G-LTE/3G Modems work in most countries. We can send detailed instructions for installing your own sim card and configuring your internet connection. We will still pre-configure your router settings as much as we can before shipping the product. Full support via phone, email and skype is included to assist you with connection setup.



For full remote access functionality an internet connection with a publicly accessible IP address is required. Some mobile broadband services are setup by default with a non-public firewalled IP address, which would enable outgoing uploads but no remote access into the system. Most ISPs can provide a connection with a public IP address upon request. International clients are recommended to contact your local mobile broadband ISP to confirm the availability of a Public IP address service prior to purchase to ensure full remote access system funtionslity can be achieved.
