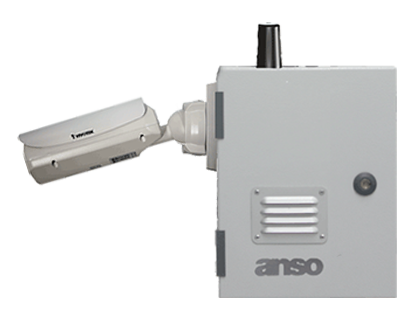

Scout V-Series HD+ 5MP 4G/3G/WiFi 12V Web Camera System

110V-240V mains powered systemBuilt for demanding outdoor hot or cold conditions

System Price:

From $ 5,590

Scout V-Series 5MP 4G/3G/WiFi 12V
Web Camera System

Scout V-series Industrial wireless 4G-LTE broadband internet web camera system.



The latest in industrial grade wireless 4G-LTE internet and 802.11n 150Mbps WiFi technology, combined with a Super High Definition IP Camera. This image recording and live remote monitoring solution is ideal for locations with on-site 12V or mains power but where a fixed line internet connection is unavailable.

Connects to any existing 12V power supply or can run from a main power supply using a 12V adapter. Running a 12V line from a mains power point is safe and does not require an electrician for installation.

With the rapid development of high speed wireless 4G broadband, a fixed internet connection is no longer required. Our 4G/3G internet connected high resolution camera systems allow versatility in positioning without being reliant on a fixed line internet connection.

Includes:

  • Super High Definition Multi-Stream IP Camera
  • 5 Megapixel HD+ 2560x1920 px resolution
  • 12V adapter for connection to a mains supply
  • Industrial grade wireless 4G-LTE modem/router with fallback to 3G
  • High gain base station 4G/3G broadband antenna for improved reception
  • WiFi 802.11b/g/n 150Mbps connectivity also included for local wireless access
  • Digital timer control for advanced power management and reliability
  • Steel weather proof lockable case and universal mounting brackets for flexible installation
  • Optional: ABS plastic road case for easy transportation and deployment
  • Optional: quick setup tripod stand

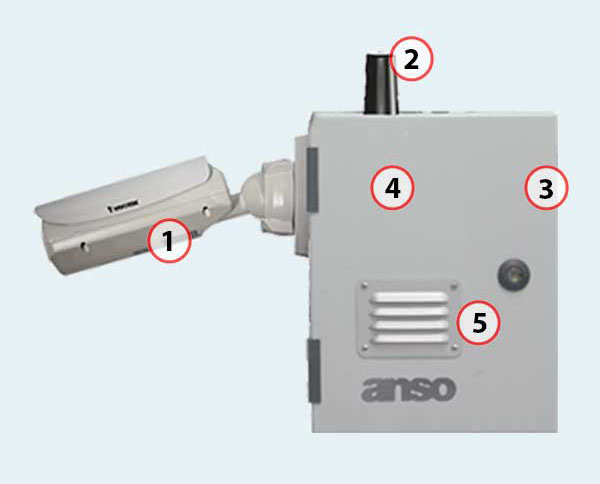

1. Super high definition 2560x1920 px Multi-Stream Day/Night auto-iris outdoor camera delivering stunning resolution in extreme conditions. 30 frame per second full resolution streaming video (bandwidth and power permitting). The multi stream system will allow up to three different image/video streams with multiple simultaneous programmable events. Continue to automatically capture timelapse images and video motion detection events uninterrupted while viewing the live video feed.

2. Industrial grade 4G-LTE mobile broadband network modem/router with fallback to 3G for upload of images to your web server or email, as well as to remotely access the camera system, manage image capture, motion detection and image profile configuration and to retrieve internally stored images and video.

3. High gain 5dBi multiband low profile 4G-LTE/3G external antenna with operational bands of 700/800/900/1800/1900/2100/2400/2600 MHz servicing all global cellular frequencies for extremely versatile connectivity range.

4. Mains Lead connects directly to external weatherproof connector, which can be capped when the lead is removed. The location of the power lead can be customised to suit your particular mounting arrangement.

5. Second stage load timer to more efficiently manage internal power usage or limit times for internet connectivity. Industrial power resource reliability for long term timelapse projects and permanent remote monitoring applications. This system allows for the powering up and down of camera and communications within the unit while charging systems continue uninterrupted. 7 day fully programmable digital timer, with up to 8 separate programs per day and separate battery backup for complete program reliability.

6. Universal mounting brackets to fit multiple variants of U-bolts and brackets and can also be used for bolting directly into timber or can be clamped using threaded rod around a square pole. We can also provide customised mounting hardware to suit your application to attach the universal mounting brackets directly to your specific pole or structure.

7. Heavy Duty Steel Outdoor Enclosure with nylon seal washers. Filtered air intake (multi stage) with moisture catch chamber and easily changed internal filters. Optional keyed lock for improved tamper resistance.



Wireless Broadband 4G-LTE/3G Internet Connectivity



The integrated 4G-LTE/3G modem/router enables the system to be installed to any location where a wireless broadband internet connection can be accessed without the requirement of a fixed line internet service. Redeployment of the system is as easy as unmounting the system and remounting in the new location.

Experience remote access monitoring with real-time live stream viewing from any internet connection utilising a dynamic DNS service to automatically stay linked with your dynamic system IP address. Remote access allows you to view the live video stream, modify event settings and system configuration or access the onboard SD card storage directly from your web browser.

We will assist you to setup a Telstra Mobile Data Sim and configure your Dynamic DNS service as part of the system setup. Fully pre-configured and tested prior to delivery to enable you to simply mount the system and turn it on and achieve complete instant functionality.

Upload timed sequential images directly to our web hosting servers via the wireless internet connection. We include 12 months of free web hosting per camera system which includes 3GB of disk space and 15GB of bandwidth per month worth $500 p/a. The multiple event settings in the camera allow you to also simultaneously upload a copy of all images to your own web server via FTP as well as store a copy of the images onboard the internal SD card. Set video motion detection triggers to record video to the local storage, while also uploading images to web for online viewing and sending email notifications with image attachements.

The extensive versatility of configuration options with multiple simultaneous image/video streams and event settings makes these camera systems suitable for a wide range of applications such as construction time lapse recording, live remote project monitoring, online stakeholder involvement, remote research and environmental projects, government infrastructure monitoring, waste dumping prevention and offender identification, remote security monitoring, bush fire and flood warning systems, remote farming and crop management or tourism promotion such as online snow and beach cameras.



Complete Integrated Online Solutions



Included with every camera system is a Website Image Viewing Platform pre-installed on your free web hosting account for 12 months. This will automatically load your latest images into an easy online viewing interface behind a secure login. This is a fully functional CMS website platform customised for image management. Ideal for easily viewing images from multiple cameras and for displaying a sequence of images to multiple online stakeholders. Displaying a sequence of images provides a powerful online tool at your disposal to see change through the images as they are uploaded instead of just viewing a single image of the current view.

All images uploaded to our web servers can be downloaded via your cPanel Web Hosting Interface. You have full access to download the raw images and all media uploaded to our servers belongs to you. We will also backup your data to offline storage for long term data retention to keep online storage space available. All data stored on our offline servers remains solely your property and is available by request free of charge.

We do not just provide hardware, but aim to provide you with a complete solution consisting of industrial remote camera system hardware as well as premium web hosting with a stand alone customisable image viewing web platform for a full function online package that is easy to install and customise remotely to maximise your return on investment. There are no restrictions on system configuration, you can utilise our included hosting and web platform solution or you can configure the systems to your own requirements and utilise your own online infrastructure.

Read More about our included Image Viewing Website Platform

We are specialists in remote camera system hardware and highly experienced in web development and custom online solutions. We can customise our solutions for large corporate organisations and government departments as well as cater for international client requirements.



Anywhere, anytime, this Solar Powered Wireless 4G Internet IP Camera System can be installed easily and quickly and is dependent only on having unobstructed exposure to the sun and receiving a wireless 3G or 4G internet connection to it's location.

The amazing functionality and extensive configuration versatility means the possibilities for use are only limited by your creativity and imagination.

Specifications - Scout V 5MP Wireless 4G/3G/WiFi 12V Web Camera System

Super High Definition Multi-Stream Web Camera

A best-in-class 5 megapixel HD+ multi-stream IP camera for extreme outdoor applications. This camera boasts super high definition 5 Megapixel HD+ (2560 x 1920 px) resolution, allowing for the delivery of extremely detailed images and coverage that is 16 times larger than a standard VGA CCTV camera and will be significantly larger than your computer screen when viewed at full size. This camera also includes a remotely adjustable optical lens to alter the optical zoom and focus as well as being able to utilise digital zoom.

To maximize the benefit of the 5 megapixel sensor, the V5 Camera Head employs several innovative technologies for optimized bandwidth efficiency. The ePTZ function enables users to quickly move to a target area for close-up shots without moving the camera physically. Users can also receive only the portions of the images they are interested in via the cropping function.

Multiple imager/video streams can be delivered simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms so as to meet different needs or bandwidth constraints. This enables digital manipulation of the live viewing stream while keeping the other streams set for active event capture. The V5 also offers activity adaptive streaming support that dynamically allocates bandwidth according to the video content and trigger state.

Designed for outdoor surveillance, the V5 features auto-iris capability to protect the lens from damage induced by direct sunlight. To adapt to light changes throughout the day, the camera includes a removable IR-cut filter and IR illuminators for superior image quality around the clock. The V5 also comes with an IP66-rated housing that offers protection against rain and dust to ensure functional operation in all types of weather conditions.

With other advanced features such as tamper detection, SD/SDHC/SDXC card on-board storage, and two-way audio (full duplex), the V5 is an all-in-one super high definition multi-stream IP network camera for outdoor environments.

Features

  • 5 Megapixel maximum resolution (2560x1920 px)
  • 1/3.2" Progressive CMOS Image Sensor
  • H.264 & MJPEG - 15 fps @ 2560x1920 5MP : 30 fps @ 1920x1080 2MP Full HD
  • Remotely adjustable Vari-focal Lens; 3~9mm Focal Length
  • Field of View: 35°~78° Horizontal ; 27°~54° Vertical ; 44°~100° Diagonal
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Adjustable video/image size, quality and bit rate.
  • 4 Simultaneous streams for live viewing and event recording
  • FTP, Email, NAS & SD event storage with image and video outputs
  • Five-window video motion detection
  • Smart Focus System for Remote and Precise Focus Adjustment
  • Dual day/night profiles for brightness, contrast, saturation, sharpness, white balance and exposure control.
  • WDR Enhancement for Unparalleled Visibility in Extremely Bright or Dark Environments
  • Built-in SD/SDHC/SDXC Card Slot for On-board Storage
  • Weather-proof IP66-rated Housing
  • Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
  • Web Browser live viewing, configuration and local event storage access

Wireless 3G Broadband Internet Connection

Wireless USB Modem not included in system. The cost of the modem and ongoing internet bandwidth costs are the customers responsibility to maintain separately to the cost of this system.

Works with most USB 3G Wireless Modems. Including Telstra, Optus, 3 Mobile, Virgin & Dodo.

Enables the system to be fully portable where ever a wireless broadband internet connection can be accessed.

Send your images directly to your web hosting server via the internet. We include 12 months of free web hosting per camera which includes 1gb disk space and 10gb of bandwidth per month worth $500.

Includes auto connection to the internet on power up and auto reconnect if the wireless internet connection is interupted.

A wireless broadband internet system allows remote login to the camera from any internet connection utilising a dynamic DNS service to automatically stay linked with your camera IP address.

As there are many different wireless broadband providers it is advisable to send us your activated USB 3G Modem so that we can ensure it works with the router system and so we can upgrade the router firmware prior to delivery of the camera system if required.

You can test your desired camera location by connecting to the internet with a laptop and your USB modem. If the laptop can get a connection to the internet, your camera will as well.
